LED walls have revolutionized digital displays across industries, from corporate boardrooms to outdoor advertising and live events. An LED wall is a large digital display system made up of modular LED panels that connect seamlessly to create vibrant, high-resolution visuals without bezels or gaps.
Understanding the technology behind LED walls helps you make informed decisions for your display needs. These systems offer distinct advantages over traditional LCD video walls, particularly in brightness, flexibility, and scalability.
Whether you’re considering an LED wall for retail, corporate, or entertainment purposes, factors like cost, applications, and maintenance requirements will guide your investment. This comprehensive guide explores everything you need to know about LED wall technology and implementation.
What Is an LED Wall?
An LED wall is a large digital display system composed of individual LED panels that connect seamlessly to create a unified, high-resolution screen. Each LED functions as a pixel that can be controlled to produce vibrant visuals for indoor and outdoor applications.
How LED Walls Work

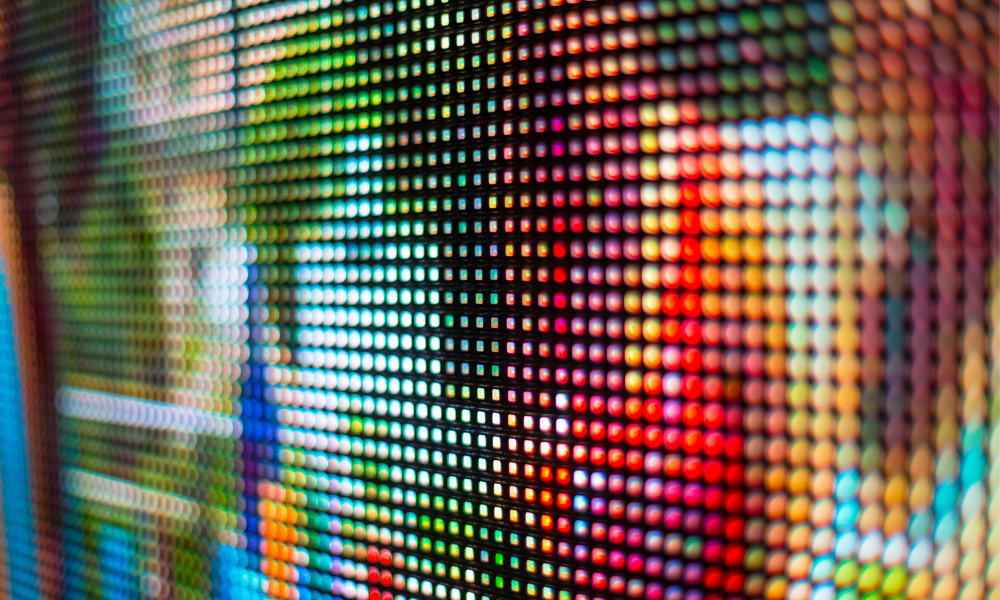

LED walls operate through thousands of tiny light-emitting diodes arranged in a grid pattern across modular panels. Each LED serves as an individual pixel that emits red, green, or blue light when electricity passes through it.
The system controls the brightness and color of each LED to create images and video content. By rapidly changing the color values of these pixels multiple times per second, the display produces smooth motion and dynamic visuals.

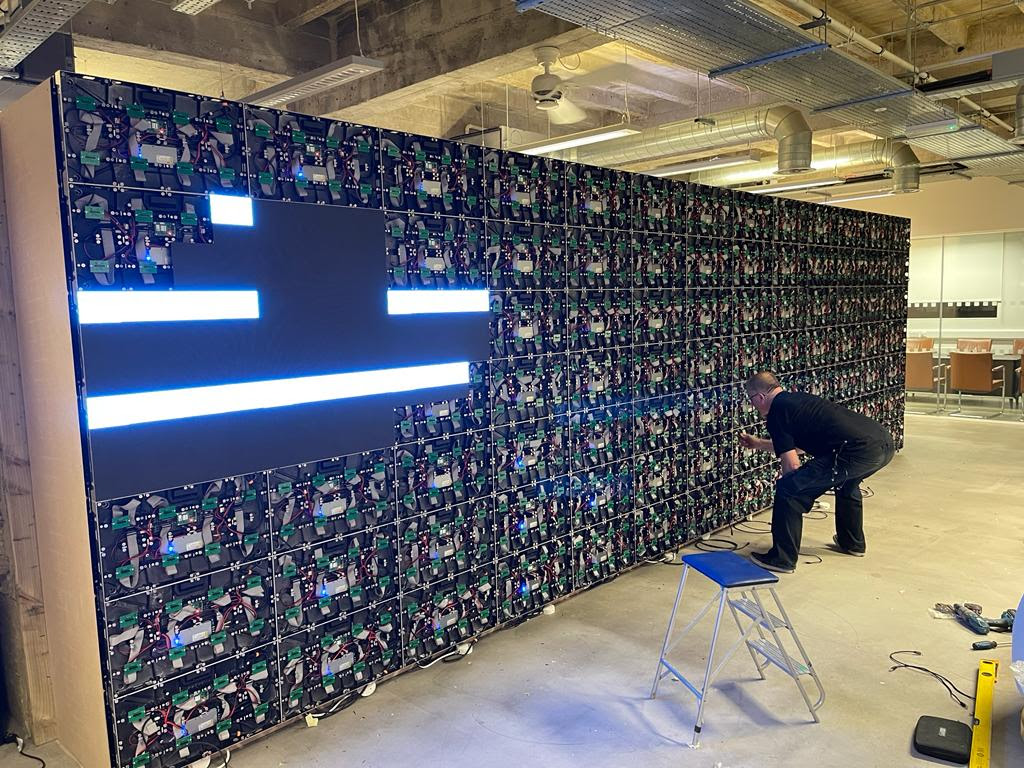

Key mechanical components include:
- LED tiles containing the individual diodes
- Cabinets that house and secure the tiles
- Framework systems for mounting and alignment
- Controllers that process and distribute data signals

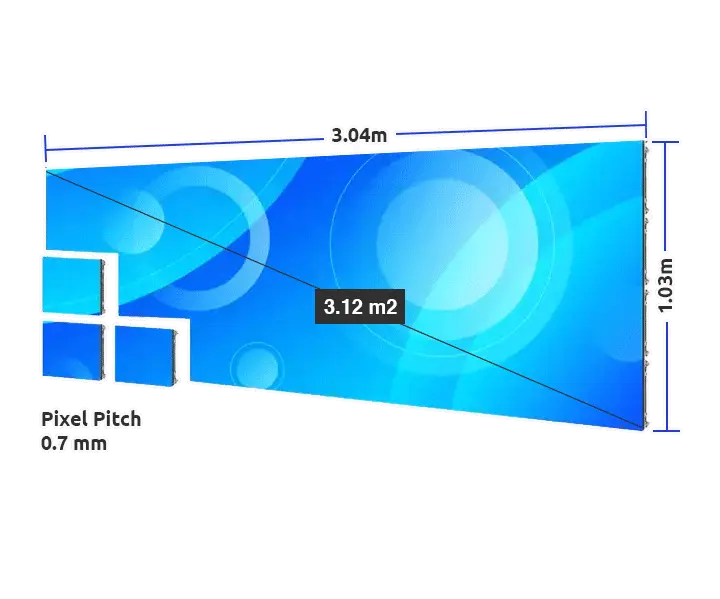

The pixel pitch determines how closely spaced the LEDs are, affecting viewing distance and image clarity. A lower pixel pitch allows closer viewing but increases cost due to the higher number of LEDs required per panel.
Core Features of LED Walls
LED walls offer several distinctive characteristics that set them apart from traditional display technologies. Seamless construction eliminates bezels between panels, creating uninterrupted visual content across large surfaces.
Modular design allows you to customize dimensions and create displays in virtually any size or shape. You can even configure curved installations by mounting panels on specially designed frameworks.
High brightness levels make LED walls visible in direct sunlight and bright environments. The displays don’t require glass screens, eliminating glare issues that affect other display types. This allows them to be used in transparent LED displays that can be placed without blocking visibility.
Durability and serviceability stand out as major advantages. Individual panels can be easily replaced if they develop faults, minimizing downtime and maintenance costs.
Weather resistance enables outdoor installations without additional protective enclosures. Many LED display screen systems can withstand various environmental conditions while maintaining performance.

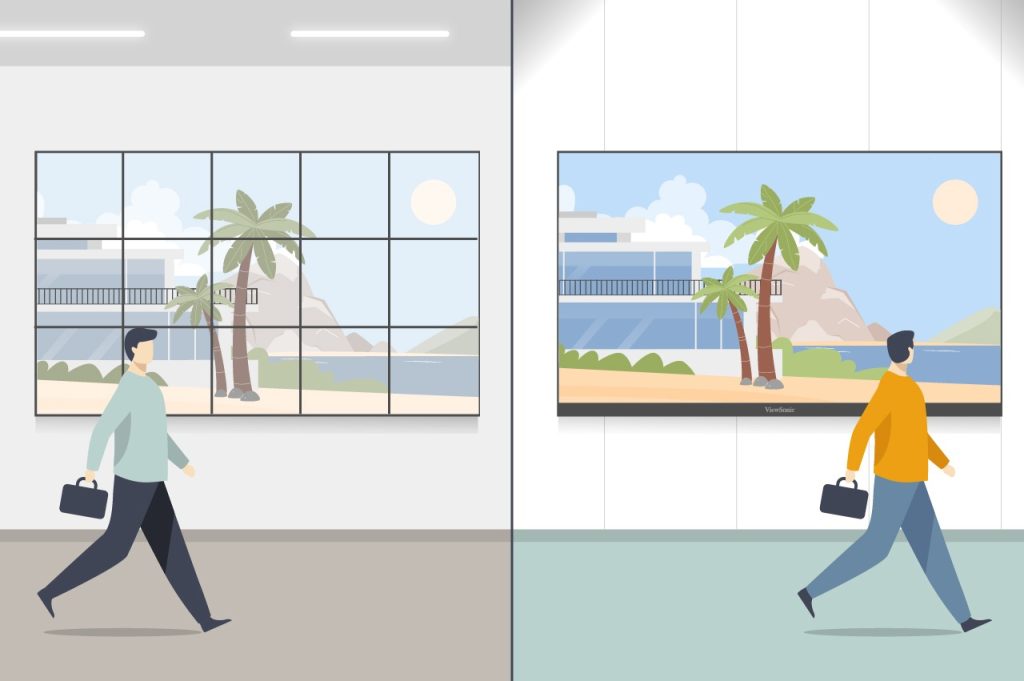

LED Wall vs. LCD Video Walls
LED walls deliver seamless, high-brightness displays ideal for large-scale viewing, while LCD video walls provide superior close-up clarity and detailed text at lower costs. The choice depends on your viewing distance requirements, budget constraints, and image quality needs.
Picture Quality Differences
LED walls suffer from pixelation when viewed up close. Fine details become lost and text appears illegible at short distances. You need to multiply the pixel pitch by 3 to determine the minimum viewing distance in feet.
LCD displays offer over 8 million pixels in modern 4K configurations. You can stand less than one foot from the screen while maintaining crystal-clear image quality. This makes LCD vs LED displays fundamentally different in their optimal use cases.
LED walls excel at displaying content with movement, animation, and bright colors from farther distances. The individual diodes produce both color and light without requiring glass or color filters.
LCD technology uses liquid crystal material between electrode layers with LED backlighting. This creates better viewing angles and less glare compared to LED screens.
Viewing Angles and Brightness
LED panels deliver higher brightness ratings and superior contrast ratios. They perform exceptionally well in direct sunlight and bright ambient lighting conditions. The high brightness creates more vivid colors that remain visible even in challenging lighting environments.
LCD video walls typically offer better viewing angles with less color distortion when viewed from the side. The brightness measured in Nits can be adjusted based on your specific lighting conditions, though generally lower than LED alternatives.
LED walls maintain consistent image quality across wider viewing angles due to their direct emission technology. This makes them suitable for spaces where viewers approach from multiple directions.
The refresh rate on LED panels creates smooth motion display without judder. This advantage becomes particularly noticeable when displaying fast-moving content or animations.
Seamless Display Experience
LED panels create completely bezel-free displays when combined together. No visible lines interrupt the digital canvas, providing a truly unified viewing experience. Individual panels range from 12×12 inches to 36×18 inches, allowing flexible configurations.
LCD video walls have thin bezels between each display panel. Modern LCD displays minimize bezel thickness through “bezel-to-bezel” measurements, but visible seams remain between adjacent screens.
LED panels adapt to curved surfaces, 90-degree edges, and non-standard configurations. The smaller panel sizes enable smart video wall installations in unique architectural spaces that LCD displays cannot accommodate.
LCD displays are limited to standard sizes like 46-inch and 55-inch panels. This restriction affects design flexibility but simplifies installation planning and reduces complexity in large-scale deployments.
Applications and Use Cases
LED walls serve diverse industries through their ability to deliver high-impact visual content in various environments. These display systems excel in advertising venues, live event productions, and mission-critical monitoring facilities.
Digital Signage and Advertising
You’ll find LED walls transforming retail environments into immersive shopping experiences. Major retailers use these displays to showcase product demonstrations, seasonal promotions, and brand messaging that captures customer attention.
Outdoor advertising applications include highway billboards, building facades, and transit stations. These installations operate effectively in bright sunlight while delivering vibrant colors that traditional printed advertisements cannot match.
Common advertising locations:
- Shopping malls and retail stores
- Sports stadiums and arenas
- Airport terminals and train stations
- Times Square-style digital billboards
Restaurants and hospitality venues integrate LED walls for digital menu boards and promotional content. You can update messaging instantly without printing costs or installation delays.
Events and Exhibitions
Concert venues rely on LED walls as stage backdrops and side extensions to ensure every audience member enjoys clear visual content. These displays scale from intimate club settings to massive festival installations spanning hundreds of feet.
Corporate events utilize LED walls for keynote presentations, product launches, and trade show booths. You can configure multiple panels to create curved or angled displays that match your venue’s architecture.
Event applications include:
- Music festivals and concerts
- Corporate conferences
- Wedding receptions
- Sports events and award ceremonies
Exhibition halls feature LED walls for booth displays that attract visitors from across large convention spaces. The brightness and motion capabilities help exhibitors stand out in crowded environments.

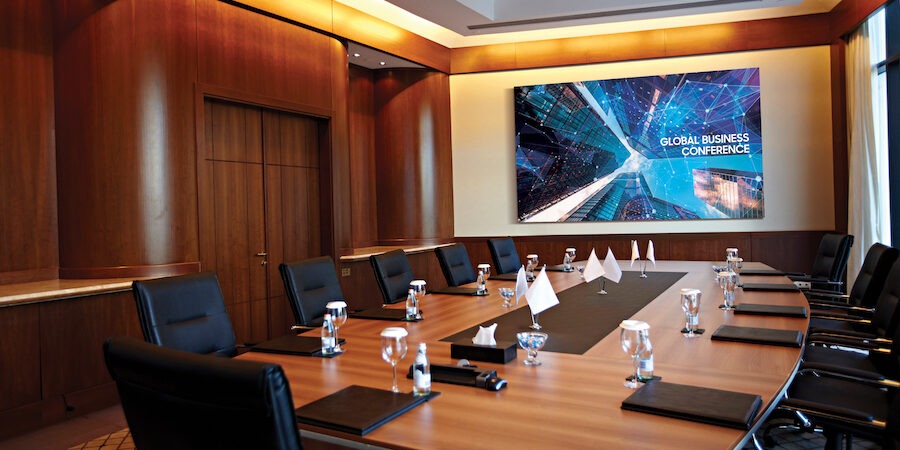

Corporate Control Rooms
Mission-critical facilities depend on LED walls for 24/7 monitoring operations. You can display multiple data sources simultaneously while maintaining consistent brightness and color accuracy over extended periods.
Security operations centers use LED walls to monitor surveillance feeds, access control systems, and emergency response protocols. The seamless panel connections eliminate bezels that could obscure important visual information.
Control room environments:
- Emergency dispatch centers
- Network operations centers
- Financial trading floors
- Transportation management facilities
Manufacturing plants integrate LED walls to display production metrics, safety information, and quality control data. You can customize layouts to match your specific monitoring requirements and viewing distances.
Cost Considerations
LED wall pricing varies significantly based on technology specifications and installation requirements. Understanding these cost factors and comparing LED versus LCD options helps determine the best investment for your display needs.
LED Wall Pricing Factors
Display size represents the primary cost driver for LED walls. Larger installations require more panels, increasing both hardware and installation expenses proportionally.
Pixel pitch directly affects pricing, with smaller pixel pitches commanding premium costs. Fine pitch displays under 2.5mm cost significantly more than standard 4-6mm configurations.
Resolution requirements impact your budget substantially. 4K displays cost more than standard HD options due to increased pixel density and processing requirements.
| Factor | Cost Impact |
| Size | High |
| Pixel Pitch | Very High |
| Resolution | Medium-High |
| Indoor/Outdoor | Medium |
Installation complexity varies based on mounting requirements and location accessibility. Professional installation typically adds 15-30% to total project costs.
Outdoor LED walls cost more than indoor versions due to weatherproofing and higher brightness requirements. These displays need IP65 ratings and enhanced durability features.
Maintenance costs should factor into long-term planning. Quality displays require minimal upkeep but budget for periodic cleaning and component replacement.
LED vs. LCD Video Wall Costs
LED walls typically cost 2-3 times more than comparable LCD video wall installations initially. This price difference reflects superior technology and longer lifespan expectations.
LCD video walls offer lower entry costs but require more frequent replacements. Most LCD displays last 3-5 years in commercial applications versus 8-10 years for LED alternatives.
Operating costs favor LED technology over time. LED displays consume less power and generate less heat, reducing electricity and cooling expenses significantly.
Maintenance requirements differ substantially between technologies. LCD walls need regular lamp or panel replacements, while LED modules rarely require component changes.
The cost-quality tradeoff becomes evident in demanding applications. LED walls deliver superior brightness, color accuracy, and reliability despite higher initial investment.
Total cost of ownership calculations often favor LED installations. Lower maintenance, energy efficiency, and extended lifespan offset the premium purchase price over 5-7 years.
Maintenance and Upgrades
Regular maintenance preserves LED wall performance and prevents costly failures, while strategic upgrades extend system lifespan and enhance capabilities. Both practices require systematic approaches and proper timing to maximize your investment.
Routine Maintenance Tasks
Power down your LED wall before performing any maintenance work. This prevents electrical damage and ensures your safety during inspection and cleaning.
Clean modules monthly using microfiber cloths and approved cleaning solutions. Remove dust and debris that accumulate on LED surfaces, as buildup reduces brightness and causes overheating.
Inspect pixel performance weekly for dead pixels, color inconsistencies, or brightness variations. Use manufacturer software tools to recalibrate problematic pixels before they affect surrounding areas.
Check cable connections every three months. Look for loose connectors, damaged cables, or signs of corrosion that can cause signal loss or power interruptions.
Monitor ventilation systems regularly. Clean fans and air vents to prevent dust accumulation that leads to overheating and component failure.
Update firmware and control software as manufacturers release patches. Schedule updates during low-usage periods and always backup current configurations before applying changes.
Document maintenance activities in a log book. Record dates, issues found, and repairs completed to track patterns and plan future maintenance schedules.
Upgrading LED Walls
Evaluate upgrade timing based on technology advances and system performance. Most LED walls benefit from upgrades every 5-7 years when newer technology offers significant improvements.
Consider modular upgrades rather than complete system replacement. Replace individual modules or control systems to improve resolution, brightness, or processing capabilities while preserving existing infrastructure.
Upgrade control processors to handle higher resolutions, additional inputs, or advanced features like HDR support. Modern processors often provide backward compatibility with existing LED modules.
Replace power supplies with more efficient models to reduce energy consumption and heat generation. Newer power systems often include better surge protection and monitoring capabilities.
Add backup systems during upgrade cycles. Install redundant processors, power supplies, or network connections to minimize downtime during equipment failures.Plan upgrade installation during scheduled downtime periods. Coordinate with content providers and facility managers to minimize disruption to normal operations.
