Content Management System

About Content Management System

The key component to any digital signage solution is effective content and an easy-to-use content management system (CMS) to help deliver real-time dynamic information. A good CMS can simplify the creation of your messages, enabling you to deploy them quickly and easily. We can even customize your message delivery system to your exact requirements.

Agile, Powerful and
Dynamic Experience

What CMS Can Provide?

Scale and Reach

Full Control

Maximize ROI

Our Technology

REV Interactive uses the latest technology to provide unrivaled scalability. It is the next generation of digital signage. We provide a simple way to manage your digital signage network.

  • Upload and store content
  • Manage sequences
  • Add triggers and actions
  • Monitor the status of screens
  • Upgrade player software
  • Apply logo and branding

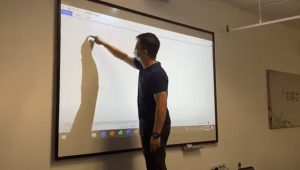

Smart Video Wall Portfolio

Available Sizes.Customizable from 70″ – 500″ Standard Size: 70″, 82″, 85″, 103″
Overlay Thickness.14 mm
Touch Points.True Multi-Touch (Detects 32+ (unlimited) touch points simultaneously) Touch Wall Plus: 32+ (unlimited) touch points Touch Wall Standard: 12 touch points Touch Wall Basic: 6 touch points
Touch Glass.Not Available
Sample Rate.Up to 200 fps
Power Supply.5V/4A power adapter
Interface.USB 2.0 (Full speed)
Programming Interface.PQ Labs SDK / Windows Native Touch / TUIO
USB Extension.100 meters with Extender
Waterproof.Not Available
Supported OS.Windows XP/Vista/7/8, Mac OS X, Ubuntu/Fedora

General data Sheet for IR / Infrared Multi Large Size Touch Video Mounted Wall

Mechanical ParametersTouch methodAny opaque object, such as finger, pen, glove, etc.
Touch timesUnlimited
Touch active powerNo need
SafetySelect different toughened glass according to safety grade
NoiseNo noise
Surface durabilityThe surface rigidity is same as glass, 5.0-7.0 OGN/M²
Electrical ParametersOperation Voltage+5V DC, Allowed +4.75 to +5.25V
Power modeUSB
Power Consumption1W – 2.5W
ESD protectionAir: ±8KV, Body: ±4KV
InterfaceUSB 2.0
Environmental ParametersTemperatureOperation: -20℃~60℃; Storage: -40℃~85℃
Humidity10%~90%RH
IP gradeIP65
Light resistanceAmbient light resistance, work normally in the sunlight
Function ParametersTouch point2/4/6/10/16/32/64 points
Resolution32768 x 32768
Linearity tolerance1 mm
Response timeFirst click<16ms, continuous click<6ms
DriftingNo drifting
Supported protocolsWin7, flash, TUIO, etc
Operating systemsWindows 8/7/XP, MAC OS X, Linux, Android, etc
Min. touch diameter5mm
LuminousnessNo glass 100%, AR glass 92%, common toughened glass 90%

We love new projects! Let's get started.

Our business scope includes broadcasting, interactive digital signage, defence, geo-intelligence, education, collaboration, product presentation and gaming. We believes that Multi-touch solutions will bring a new way of interactive among digital device and fingers & gestures. We're excited if you have new business ideas. Tell us and let us plan for you!
